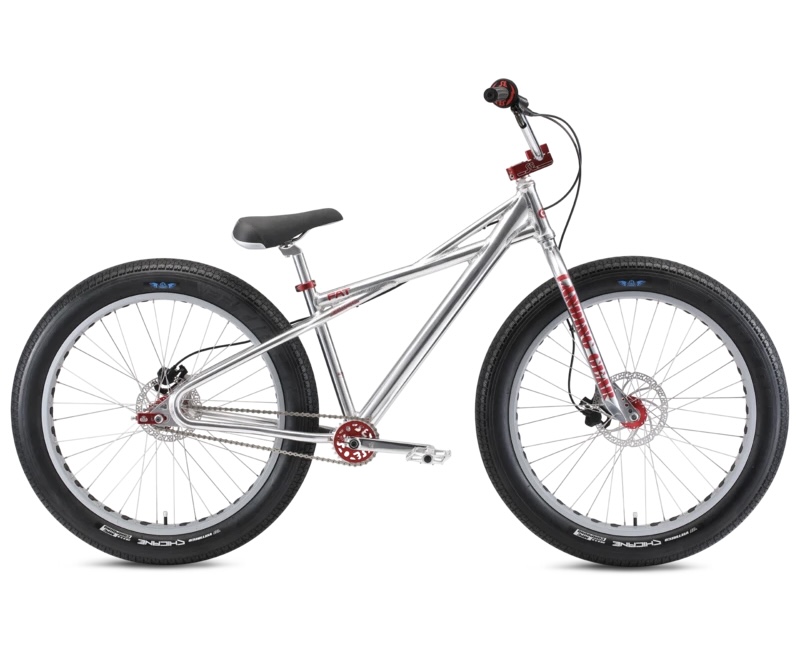

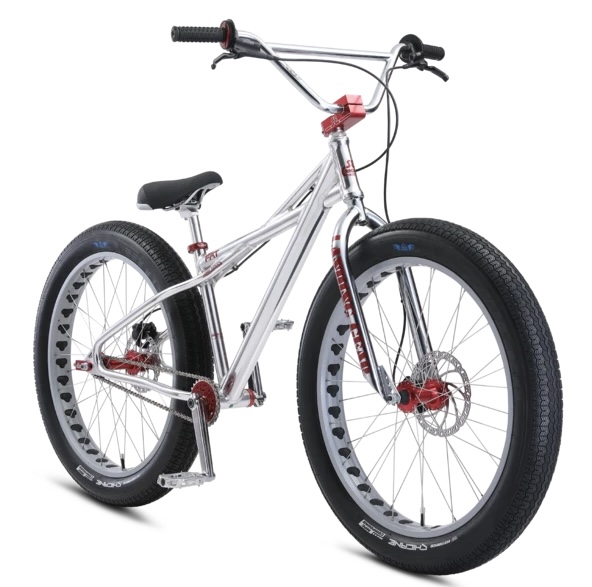

Fat Quad

Description

Colour: High Polish Silver

Frame: 6061 Aluminium, Single Downtube Fat Quad Design, Internally-machined Integrated Head Tube, Looptail Rear End, Retro Dropouts, 100mm Euro Bottom Bracket, 170mm Spaced Dropouts, Disc Brake Tabs

Fork: Landing Gear, Full Cr-Mo, Disc Tabs, 450mm Axle to Crown, 38mm Offset, 135mm Spaced Dropouts

Crankset: SE V-Ridge 3-pc Cr-Mo, Cranks,175mm, External Sealed Bearing Euro Bottom Bracket, 200mm Spindle length, 19mm Spindle Diameter, 27T Alloy SE Racing Sprocket

Pedals: X-Pedo Low-profile Platform w/ Removable Pins

Chain: KMC S1

Wheelset: Alloy 36H Hubs, Sealed Rear, 135mm Front Hub & 170mm Rear Hub, w/ SE Bubble Fat 65mm Rims, 14T Cassette, Stainless Spokes

Tyres: Vee Tire Co x SE Racing Chicane, 26″ x 3.5″, 72TPI, Front & Rear,

Brakeset: Tektro Auriga, Hydraulic Disc, Easy to Adjust Open System, Dual Piston, Automatic Caliper Positioning, 180mm Front Rotor, 160mm Rear Rotor

Brake Levers: Tektro Auriga, 2-Finger Alloy, Front & Rear

Headset: FSA Orbit CE, Sealed 1-1/8″ Integrated

Handlebar: Big Honkin’ Cr-Mo Cruiser Bar, 29″ x 7″, 12° Backsweep, 2° Upsweep

Stem: Retro Alloy Top-Load w/ Engraved SE Logo on Top & Sides, 55mm Reach

Grips: Special Edition ODI Mushroom II Grips, Made in USA, w/ SE Donuts

Seat: SE Flyer Seat w/ Custom SE Bottle Opener Brace

Seatpost: Micro-Adjust Alloy, 27.2mm

Seat Clamp: SE Racing Champ Clamp, Alloy, 31.8mm Inner Diameter

Accessories: Alloy Valve Caps, SE Chain Tensioners
